2013 HOT sales ore drilling rig for mining CQ-15 manufacturer from China chongqing gold mechanical $electrical equipment co.,ltd

2013 HOT sales ore drilling rig for mining

Price:	1000.0~5000.0 USD
Payment Terms:	T/T,L/C,D/A,D/P
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CQ-15

Production Capacity: 50sets

Delivery Date: 15days

Type: Others

Means of Transport: Ocean,Land,Air

Packing: wooden case

Application: Coal

Brand Name: gold

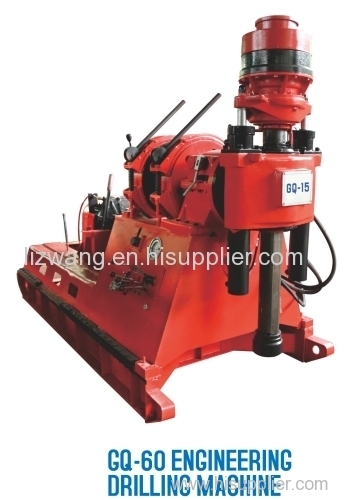

Drilling Rigs CQ-15
1.Big torque, lightweight and compact structure
2.Engineering drilling machine

1.APPLICATIONS:

GQ-15 engineering drilling machine is newly designed special for largediameter pile hole drilling, can use forward-circulation and reverse circulationdrilling methods mainly used in drilling large diameter pile for building,skyscraper, dam, harbor, bridge etc. and drilling large diameter well

2.FEATURES:

    Big torque, lightweight and compact structure in compare with same kindmachine.
    Mast, top-drive head move down or up along with, strength andrigidity.
    Top-drive head has large inner diameter (182×182mm).
   Reverse-circulation drilling if equipped with necessary equipment as well asforward-circulation drilling.
    Strength, five forward speeds and onereverse speed, suitable for drilling a variety of rock, easy to handle accidentshappened in hole.
    Top-drive head is equipped with hand-powered chuck,square driving stem, large stroke, drilling efficiently.
    Hydraulic feed,big pull and push force easy to make pressure and depression drilling.
   Hydraulic retracting stroke is 1150mm, easy to lower and hoist drillingtools.
    Walking device, easy to move and find accurate holeposition.
    Reasonable arrangement, easy to operate, smooth.
    Can beequipped with special derrick if user needs

TechnicalSpecifications

large dia.water well drilling rig
hole dia (mm)		600-1500
drilling capacity (m)		100-50
top drive head speeds(r/min)	forward	13.5;22.8;40.19;63.9;98.5
	reverse	12.85
max torque (N.m)		22100
top drive head inner hole (mm)		182182
top drive head max pull force(KN)		27
top drive head max push force(KN)		98.3
top drive head stroke(mm)		1000
hoist lift capacity with singlerope(KN)		48
retracting distance(mm)		790
oil pump		SCB32/12 twin-gear oil pump
power unit	electric motor	Y225S-4 37KW
	diesel engine	2135AG 50Hp
overal dimensions(LWH)mm		3620×1880×2704
drill body weight(excluding power)kg		5900

3. Products Showcase

Relatedproducts

4,why GOLDTeam

GOLD'sproductsspread all over the world

GOLDEstablished in 2009,Gold is a high -tech enterprise specializing indesign,manufacture and sale of geological instrument.

Gold'sproducts are manufactured stricity in accordance with industrial standard andhave passed through quality and technical standard evaluation as wellasquality inspection.

1.second tonone slaes service

2. Ourfactory self-produced, the quality can be strictly controlledQuickdelivery, firm package

3.Professionalsales team, Providing any feedback from the keen customers

4. Regardingcustomer benefit as the starting point, pay attention to the real needs of thecustomer

5. IS09001Certificate.

6.Shipping by Express DeliveryTNT,UPS,EMS,DHL,Fedex,Dpex etc.

AirFreight and sea transportation

We are readyfor all challenges!
